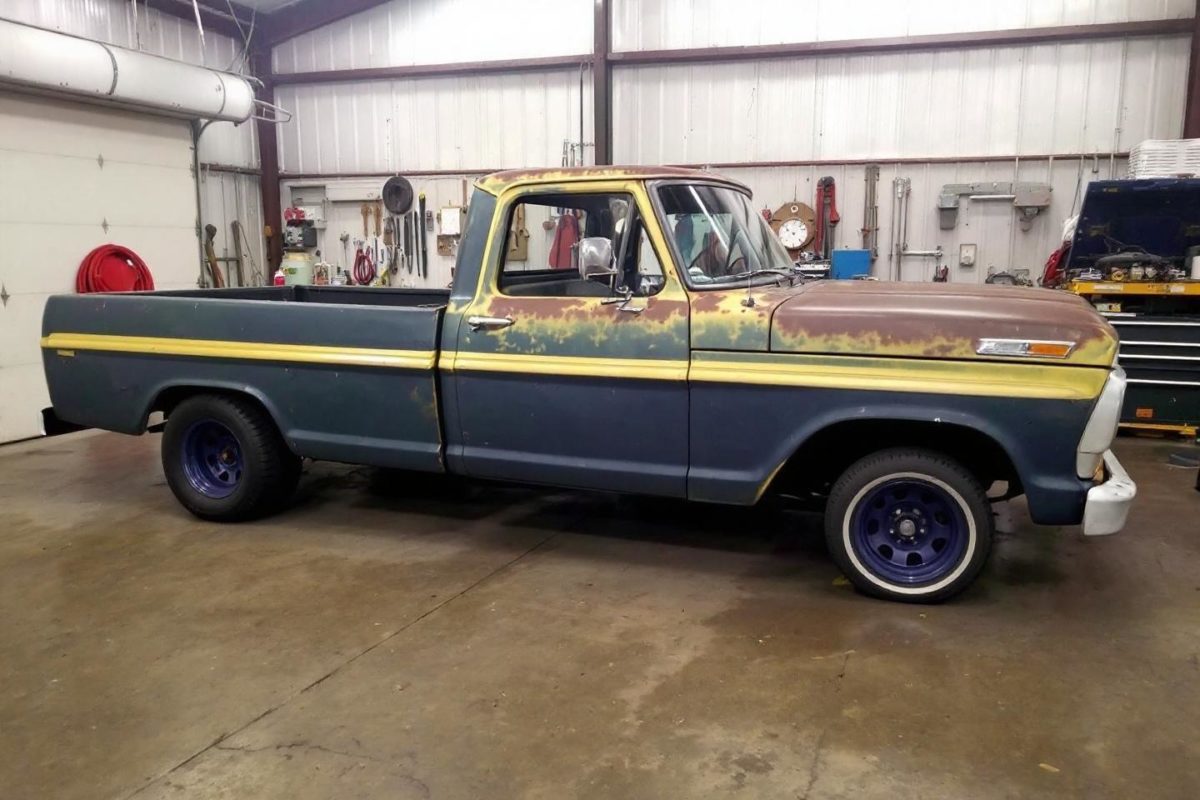

Lowering a vintage Ford F-series truck from 1965 to 1980 transforms both its appearance and driving characteristics. The dropped I-beam suspension kit represents one of the most effective methods to achieve a lowered stance while maintaining proper geometry. This modification appeals to enthusiasts seeking improved aesthetics, better aerodynamics, and enhanced handling performance for their classic pickup trucks.
Understanding dropped I-beam suspension systems for Ford F200/F250/F350 trucks
The dropped I-beam kit works by relocating the front axle mounting points several inches lower than the factory position. Unlike cutting or heating the original beams, this approach preserves the structural integrity of your Ford’s front suspension. The kit typically includes new drop brackets, longer shock absorbers, and modified steering components to accommodate the lowered ride height.
These kits specifically target the Twin I-Beam suspension found on Ford trucks manufactured between 1965 and 1980. The system maintains the independent front suspension characteristics while dramatically reducing the truck’s overall height. Professional installers recommend this method over spring cutting because it preserves the suspension’s travel and load-carrying capacity.
RVThis near-military 4×4 powered by a 300-hp Mercedes six-cylinder engine is the only one capable of rivaling the legendary G-ClassThe 3-4 inch drop range provides the ideal balance between aggressive appearance and practical functionality. This measurement refers to the reduction in ride height measured at the front bumper or fender wells. The actual axle drop may differ slightly due to spring compression and geometry changes throughout the suspension system.
| Component | Stock Position | Modified Position | Height Change |
|---|---|---|---|
| I-beam mounting point | Standard bracket | Dropped bracket | 3-4 inches lower |
| Shock absorber | Factory length | Extended length | Maintains travel |
| Steering geometry | Original angle | Corrected angle | Restored alignment |
Essential tools and preparation steps for I-beam modification
Proper preparation ensures a successful suspension modification project without compromising safety or functionality. Begin by gathering the necessary tools and workspace requirements. A well-equipped garage with adequate lighting and ventilation provides the ideal environment for this complex mechanical work.
The tool list includes heavy-duty jack stands, a hydraulic floor jack, impact wrenches, and various hand tools. Safety equipment such as protective eyewear, work gloves, and steel-toed boots prevents injuries during the installation process. Professional mechanics also recommend having a torque wrench to ensure proper fastener specifications.
Vehicle preparation involves thoroughly cleaning the front suspension components and documenting the original configuration with photographs. Remove any aftermarket modifications that might interfere with the installation process. Check the condition of existing bushings, ball joints, and tie rod ends, replacing worn components before proceeding with the lowering kit installation.
RVRetro Toyota Land Cruiser gets G-Class treatment for EuropeHere are the critical preparation steps :
- Secure the vehicle on level ground with proper jack stands
- Remove both front wheels and inspect suspension components
- Disconnect the battery and remove any electrical connections near the work area
- Mark the original alignment settings for reference during reassembly
- Clean all mounting surfaces and apply penetrating oil to stubborn fasteners
Step-by-step installation process for dropped I-beam kits
The installation begins with complete disassembly of the front suspension system. Start by supporting the vehicle properly and removing the wheels, brake components, and steering linkage. The I-beam assemblies require careful removal to avoid damaging surrounding components or the vehicle’s frame structure.
Remove the factory mounting brackets and clean the attachment points thoroughly. The new dropped brackets must align perfectly with the existing bolt holes to ensure proper installation. Test-fit all components before applying final torque specifications, checking for any interference with brake lines, steering components, or the vehicle’s frame rails.
Install the extended shock absorbers and verify proper suspension travel throughout the operating range. The modified geometry requires careful attention to bump stop clearance and full compression limits. Adjust the steering components to restore proper alignment angles and eliminate any bind points in the suspension system.
RVTrue 4×4 capability at a B-SUV price — this off-roader at around $26,000 is exactly what we need, and everyone had forgotten about itProfessional installers emphasize the importance of gradual assembly verification at each step. Check component clearances, verify proper bolt torque, and ensure all electrical connections remain secure. The brake system requires bleeding after reassembly to remove any air introduced during the installation process.
Performance benefits and maintenance considerations post-installation
The completed I-beam modification delivers significant improvements in vehicle appearance and handling characteristics. The lowered center of gravity reduces body roll during cornering and creates a more stable driving experience at highway speeds. Many owners report improved fuel economy due to reduced aerodynamic drag from the lowered front end profile.
The visual transformation dramatically changes the truck’s stance, creating a more aggressive and modern appearance while maintaining the classic Ford styling cues. The reduced ride height also makes loading and unloading cargo easier, particularly for owners who use their trucks for recreational purposes rather than heavy-duty work applications.
Regular maintenance becomes even more critical after installing the dropped I-beam kit. Monitor suspension component wear patterns closely, as the modified geometry can affect how components interact with road surfaces and debris. Schedule alignment checks more frequently to ensure proper tire wear and steering response characteristics.
RVAffordable 4×4 remains unbeatable under $30,000Long-term ownership considerations include potential ground clearance limitations and increased susceptibility to road damage. The lowered stance requires more careful navigation over speed bumps, parking lot entrances, and uneven terrain. However, most enthusiasts find these minor inconveniences acceptable given the dramatic improvement in appearance and driving dynamics achieved through the dropped I-beam suspension modification.
